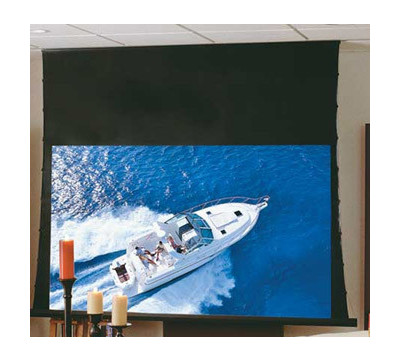

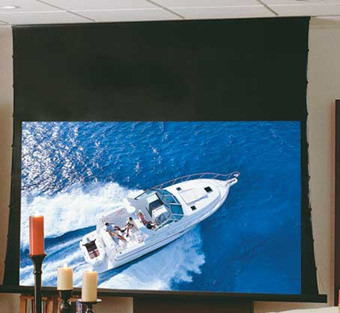

Draper Ultimate Access/Series V - HDTV Format Electric Projector Screen

This Draper Ultimate Access/Series V - HDTV Format Electric Projector Screen has a viewing surface which is flame and mildew resistant. The viewing surface of Electric Projector Screen with black masking borders and each side of surface has tab-guide cable system for even lateral tension and flat surface. Bottom of surface supported and masked by black extruded aluminum dowel weighted to apply proper vertical tension. The three position control switch to stop or reverse screen at any point and switches furnished with cover plate. The electrically operated 110-120 volts AC, 60 hertz five wire motor mounted inside screen roller, instantly reversible, lifetime lubricated, with internal thermal overload protector and electric brake. Motor mounted with sound absorbing fixtures. It has preset, accessible limit switches. Case finished white with back, top, front, and bottom of extruded aluminum. End caps are stamped steel. Bottom of case consists of an independently motorized trap door that opens up inside the screen case.

The trap door and the access door both hinge downward to allow access to inside of screen case. The doors remain attached to the screen case via a concealed full-length hinge. Releasing one latch at each end of screen case allows the doors to hinge downward and a prop arm at each end may be pivoted to engage with end caps, keeping the door assembly in its fully open position. Symmetrical case allows for viewing surface to unroll from the back or front of the roller. Internal junction box allows case to be installed and pre-wired to building supply.

Junction box to have two plug-in style connectors, mating with connectors from motorized roller/fabric assembly and motorized door assembly. The case flange to trim edges of ceiling opening and case may be mounted with 3/8 inch threaded rod, with lag screws through brackets, or with wire in a grid ceiling. Mounting brackets slide in channels on top of case, allowing brackets to be moved to avoid interference with conflicting building structures. Bracket may be locked in position by tightening set screws. Roller/fabric assembly may be installed in case at factory or job site. Brackets support centered in case regardless of screen size.

The Electric Projector Screen is available in a variety of image areas and screen materials.

Product Overview & Specs

This Draper Ultimate Access/Series V - HDTV Format Electric Projector Screen has a viewing surface which is flame and mildew resistant. The viewing surface of Electric Projector Screen with black masking borders and each side of surface has tab-guide cable system for even lateral tension and flat surface. Bottom of surface supported and masked by black extruded aluminum dowel weighted to apply proper vertical tension. The three position control switch to stop or reverse screen at any point and switches furnished with cover plate. The electrically operated 110-120 volts AC, 60 hertz five wire motor mounted inside screen roller, instantly reversible, lifetime lubricated, with internal thermal overload protector and electric brake. Motor mounted with sound absorbing fixtures. It has preset, accessible limit switches. Case finished white with back, top, front, and bottom of extruded aluminum. End caps are stamped steel. Bottom of case consists of an independently motorized trap door that opens up inside the screen case.

The trap door and the access door both hinge downward to allow access to inside of screen case. The doors remain attached to the screen case via a concealed full-length hinge. Releasing one latch at each end of screen case allows the doors to hinge downward and a prop arm at each end may be pivoted to engage with end caps, keeping the door assembly in its fully open position. Symmetrical case allows for viewing surface to unroll from the back or front of the roller. Internal junction box allows case to be installed and pre-wired to building supply.

Junction box to have two plug-in style connectors, mating with connectors from motorized roller/fabric assembly and motorized door assembly. The case flange to trim edges of ceiling opening and case may be mounted with 3/8 inch threaded rod, with lag screws through brackets, or with wire in a grid ceiling. Mounting brackets slide in channels on top of case, allowing brackets to be moved to avoid interference with conflicting building structures. Bracket may be locked in position by tightening set screws. Roller/fabric assembly may be installed in case at factory or job site. Brackets support centered in case regardless of screen size.

The Electric Projector Screen is available in a variety of image areas and screen materials.

• Electric Projector Screen with HDTV format
• Motor-in-roller operation
• Flame and mildew resistant screen surface
• Tab tensioning system keeps screen flat, providing the best possible picture
• 12" Standard extra drop
• Independently motorized ceiling closure
• Motorized closure forms a solid bottom panel giving the ceiling a clean appearance
• Can be operated from any remote location
• 3 Position control switch to stop or reverse screen at any point
• Aluminum extruded case with white finish
• Offered in a variety of image areas and screen materials
