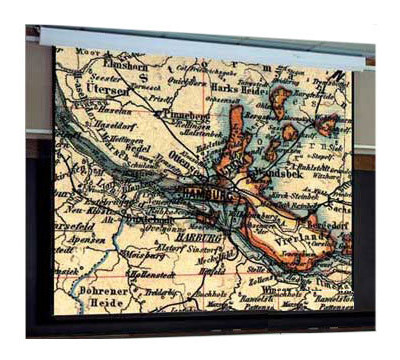

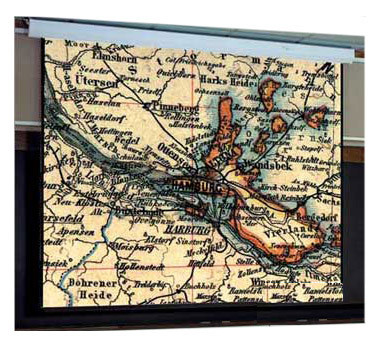

The Draper Targa - AV Format Electric Projector Screen is ideal for auditoriums and lecture halls, hospitals, hotels, churches, boardrooms and conference rooms. It has fire and mildew resistant viewing surface. The bottom of viewing surface is attached to weighted dowel. The three-position control switch can stop or reverse the screen at any point in the operating cycle. The switches are furnished complete with cover plate.
The Electric Projector Screen has electrically operated motor mounted inside 3 inch diameter metal roller and is instantly reversible, lifetime lubricated, with internal thermal over load protector and electric brake. The motor has built-in low voltage controller and preset electronic limits. The case is made of 22 gauge, one piece steel with flat back design and scratch-resistant white polyester finish. The end caps are finished to match case, forming universal, wall or suspended hanging brackets. It is available in different image area sizes and screen materials.
|
|
|
|
|
|
|
|
|
|
|
|
-
Screen Fabric: Matte white, Glass beaded, High contrast gray, AT1200, AT gray
-
Format: AV
-
Aspect Ratio: 1:01
-
Diagonal Viewing Size: 71, 85, 99, 119, 120, 136, 137, 154, 153, 170, 180, 203 in
-
Application: Auditorium, Lecture halls, Hospitals, Hotels, Churches, Boardrooms and conference rooms
-
Switch: 3 Position control switch
-
Mounting: Wall or ceiling
-
Border: Yes
-
Construction: Composition wood case
-
Motor: (3) Wire motor
-
Screen Height: 50, 60, 70, 84, 96, 108, 120, 144 in
-
Screen Width: 50, 60, 70, 84, 72, 96, 108, 120, 144 in
-
Voltage: 110 - 120 V
-
Casing Color: White
Product Overview & Specs
The Draper Targa - AV Format Electric Projector Screen is ideal for auditoriums and lecture halls, hospitals, hotels, churches, boardrooms and conference rooms. It has fire and mildew resistant viewing surface. The bottom of viewing surface is attached to weighted dowel. The three-position control switch can stop or reverse the screen at any point in the operating cycle. The switches are furnished complete with cover plate.
The Electric Projector Screen has electrically operated motor mounted inside 3 inch diameter metal roller and is instantly reversible, lifetime lubricated, with internal thermal over load protector and electric brake. The motor has built-in low voltage controller and preset electronic limits. The case is made of 22 gauge, one piece steel with flat back design and scratch-resistant white polyester finish. The end caps are finished to match case, forming universal, wall or suspended hanging brackets. It is available in different image area sizes and screen materials.
- HDTV screen format with black surface color
- Black masking borders
- Fire and mildew resistant viewing surface
- Bottom of viewing surface attached to weighted dowel
- Motor mounted inside roller on special vibration insulators
- Motor with built-in low voltage controller and preset electronic limits
- 3" Diameter metal roller mounted on rubber insulated supports
- 3-Position control switch stop or re verse screen
- Switch furnished complete with cover plate
- Available in different image area sizes and screen materials
|
|
|
|
|
|
