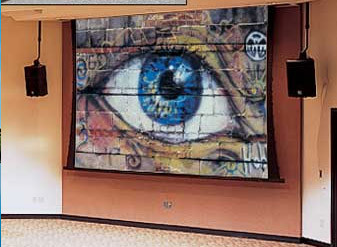

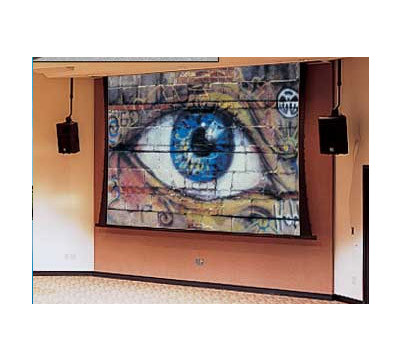

The Draper Signature or Series V - AV Format Electric Projector Screen - FREE Inside Delivery! has a viewing surface which is flame and mildew resistant, clean appearance of a ceiling-recessed screen and the independently motorized aluminum ceiling closure disappears into the white extruded aluminum case when screen is lowered. The Electric Projector Screen features tab-tensioning system that holds the surface taut and wrinkle-free. The bottom of surface is supported and masked by black extruded aluminum dowel weighted to apply proper vertical tension. The top of surface is masked by 12 inch black drop. It has a extruded aluminum case with white finish and bottom of case is fully enclosed by aluminum panels. The bottom closure panel is attached to screen case with screws and independently motorized trap door is attached with completely concealed hinges. Trap door supported along both the front and back edges for entire length, (with no crack left between door and case) and automatically opens into case when screen is operated in down direction. Bottom closure and trap door may be removed manually to allow access to roller and drive assembly.
The electrically operated 60 hertz, 110-120 Volts AC, five wire motor is mounted inside screen roller. The motor is instantly reversible, lifetime lubricated with internal thermal over load protector and electric brake. This quiet motor creates less than 44 decibel noise with preset, accessible limit switches. The three position control switch stops or reverse screen at any point in operating cycle and switch is furnished with cover plate. The metal roller is mounted with sound-absorbing fixtures.
This Electric Projector Screen is offered in a variety of image area sizes and screen materials.
FREE! Inside Delivery!
We will bring your Electric Projector Screen Inside! We won't leave it curbside like the other guys. |  |
|
|
|
|
|
|
|
|
|
|
|
|
-
Screen Fabric: M1300, M2500, HiDef gray
-
Format: AV
-
Aspect Ratio: 1:01
-
Diagonal Viewing Size: 71, 85, 99, 120, 119, 136, 137, 153, 154, 170, 180, 203, 211, 237, 240 in
-
Switch: 3 Position control switch
-
Mounting: Wall or ceiling
-
Border: Yes
-
Construction: 21 gauge steel
-
Motor: (5) Wire motor
-
Screen Height: 50, 60, 70, 96, 84, 96, 108, 108, 120, 120, 144, 144, 168, 168, 192 in
-
Screen Width: 50, 60, 70, 72, 84, 96, 84, 108, 96, 120, 108, 144, 126, 168, 144 in
-
Voltage: 110 - 120 V
-
Casing Color: White
Product Overview & Specs
LOWEST Price on the Web...Shipping is FREE!BEST PRICE on the Web! FREE Shipping! EASY Inside delivery! QUESTIONS? Call us! 800-718-1710
The Draper Signature or Series V - AV Format Electric Projector Screen - FREE Inside Delivery! has a viewing surface which is flame and mildew resistant, clean appearance of a ceiling-recessed screen and the independently motorized aluminum ceiling closure disappears into the white extruded aluminum case when screen is lowered. The Electric Projector Screen features tab-tensioning system that holds the surface taut and wrinkle-free. The bottom of surface is supported and masked by black extruded aluminum dowel weighted to apply proper vertical tension. The top of surface is masked by 12 inch black drop. It has a extruded aluminum case with white finish and bottom of case is fully enclosed by aluminum panels. The bottom closure panel is attached to screen case with screws and independently motorized trap door is attached with completely concealed hinges. Trap door supported along both the front and back edges for entire length, (with no crack left between door and case) and automatically opens into case when screen is operated in down direction. Bottom closure and trap door may be removed manually to allow access to roller and drive assembly.
The electrically operated 60 hertz, 110-120 Volts AC, five wire motor is mounted inside screen roller. The motor is instantly reversible, lifetime lubricated with internal thermal over load protector and electric brake. This quiet motor creates less than 44 decibel noise with preset, accessible limit switches. The three position control switch stops or reverse screen at any point in operating cycle and switch is furnished with cover plate. The metal roller is mounted with sound-absorbing fixtures.
This Electric Projector Screen is offered in a variety of image area sizes and screen materials.
FREE! Inside Delivery!
We will bring your Electric Projector Screen Inside! We won't leave it curbside like the other guys. | |
- Slender dimensions and contemporary design
- Wall or ceiling mounted Electric Projector Screen
- Widescreen format
- Black masking borders
- Fire and mildew resistant viewing surface
- No exposed fasteners or mounting fixtures
- Screen and dowel retract completely inside case
- Electrically operated motor
- 3" Diameter metal roller
- 3-Position control switch stop or re verse screen
- Switch furnished complete with cover plate
- Slender curved aluminum case
- End caps finished with standard dove gray
- Conduit connection provided at back or top
- Removable front fascia for easy access to roller and motor for service
- Select from various image area sizes and screen materials
|
|
|
|
|
|
