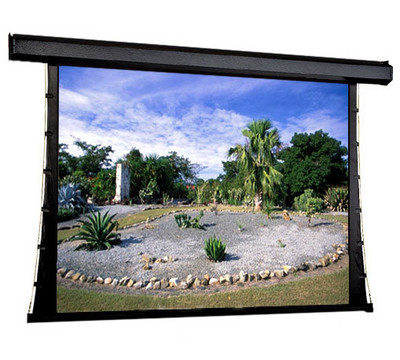

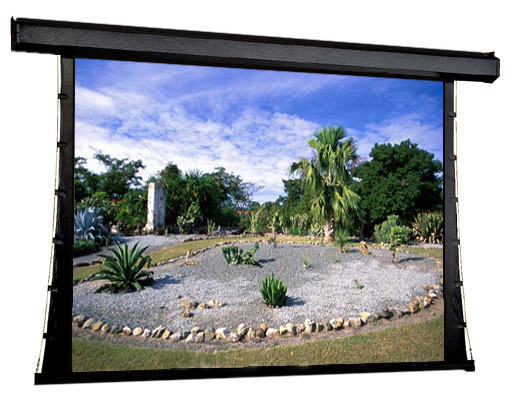

This Draper Premier - Widescreen Format Electric Projector Screen meets requirements of large-screen video and data projection. It delivers outstanding picture quality even with sophisticated data graphic projectors and features tab tensioning system which holds the surface taut and wrinkle free. The viewing surface of Electric Projector Screen is mildew resistant with black masking borders. The each side of surface has tab-guide cable system to maintain even lateral tension and hold surface flat. Bottom of surface supported and masked by black, extruded aluminum dowel weighted to apply proper vertical tension. The top of surface is masked by 12 inch black drop. The metal roller is mounted on rubber insulated supports.
The case of Electric Projector Screen is of one piece 22 gauge steel with flat back design and baked on black plastisol finish. It has 12 gauge black epoxy powder coat finished end caps which fully encloses roller ends and forming universal (wall or suspended) hanging brackets. The three position control switch to stop or reverse screen at any point and switch is complete with cover plate.
The Electric Projector Screen features electrically operated 110-120 volts AC, 60 hertz three wire motor mounted inside screen roller. The motor is instantly reversible, lifetime lubricated with internal thermal over load protector and electric brake. Quiet motor creates less than 44 decibel noise with preset, accessible limit switches and built-in low voltage controller.
This Electric Projector Screen is offered in a variety of image area sizes and screen materials.
|
|
|
|
|
|
|
|
|
|
|
|
-
Screen Fabric: M1300, M2500, HiDef gray
-
Format: Widescreen
-
Aspect Ratio: 1.85:1
-
Diagonal Viewing Size: 100, 108, 120, 132, 163 in
-
Switch: 3 Position wall
-
Mounting: Ceiling recessed
-
Border: Yes
-
Includes: Ceiling trim flange kit
-
Construction: Aluminum
-
Black Drop: 12.00 in
-
Motor: (3) Wire motor
-
Screen Height: 47, 50, 56, 63, 76 in
-
Screen Width: 87, 92, 104, 116, 140 in
-
Voltage: 110 - 120 V
-
Casing Color: Black
Product Overview & Specs
This Draper Premier - Widescreen Format Electric Projector Screen meets requirements of large-screen video and data projection. It delivers outstanding picture quality even with sophisticated data graphic projectors and features tab tensioning system which holds the surface taut and wrinkle free. The viewing surface of Electric Projector Screen is mildew resistant with black masking borders. The each side of surface has tab-guide cable system to maintain even lateral tension and hold surface flat. Bottom of surface supported and masked by black, extruded aluminum dowel weighted to apply proper vertical tension. The top of surface is masked by 12 inch black drop. The metal roller is mounted on rubber insulated supports.
The case of Electric Projector Screen is of one piece 22 gauge steel with flat back design and baked on black plastisol finish. It has 12 gauge black epoxy powder coat finished end caps which fully encloses roller ends and forming universal (wall or suspended) hanging brackets. The three position control switch to stop or reverse screen at any point and switch is complete with cover plate.
The Electric Projector Screen features electrically operated 110-120 volts AC, 60 hertz three wire motor mounted inside screen roller. The motor is instantly reversible, lifetime lubricated with internal thermal over load protector and electric brake. Quiet motor creates less than 44 decibel noise with preset, accessible limit switches and built-in low voltage controller.
This Electric Projector Screen is offered in a variety of image area sizes and screen materials.
- Widescreen formatted Electric Projector Screen
- Delivers outstanding picture quality even with sophisticated data graphic projectors
- Tab tensioning system holds the surface taut and wrinkle free
- Projected image framed by standard black masking borders at sides
- Meets requirements of large-screen video and data projection
- Motor-in-roller mounted on special vibration insulators for smooth and silent operation
- 12" Standard black drop
- Black case with matching end caps
- Mildew viewing surface with masking borders
- Quiet motor creates less than 44 db noise with preset, accessible limit switches
- 3 Position control switch to stop or reverse screen at any point
- Available in a variety of image area sizes and screen materials
|
|
|
