Screen Fabric: M1300, M2500, Hidef gray, Cineflex, AT gray, AT1200
-
Format: NSTC
-
Aspect Ratio: 4:03
-
Diagonal Viewing Size: 72, 84, 120, 180, 78, 90, 100, 150 in
-
Frame Color: Black
-
Mounting: Wall mount
-
Width: 51, 55, 58, 62, 68, 80, 98, 116 in
-
Border: Yes
-
Screen Width: 43, 47, 50, 54, 60, 72, 90, 108 in
-
Construction: Aluminum
-
Height: 65, 67, 75, 80, 88, 104, 128, 152 in
-
Screen Height: 57, 63, 67, 72, 80, 96, 120, 144 in
-
Package Weight: 27.00, 30.00, 31.00, 33.00, 37.00, 41.00, 46.00, 80.00 lbs
Product Overview & Specs

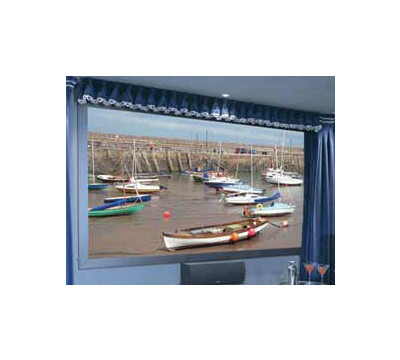

Designed for wall mounting, this Draper Onyx NTSC Format Fixed Projector Screen features beveled and extruded aluminum trim frame with injection molded corners which forms 4 inch border on all four sides and finished in black. A radical new approach to fabric attachment will amaze even the toughest of critics. Uniform tension is applied to the entire surface area, so the surface is perfectly flat. The viewing surfaces to have 3/4 inch hem pocket on all four sides to accept screen insertion tubing. Frame extrusions provide for up to 1-1/2 inch of horizontal and vertical surface tension adjustability in 3/8 inch increments to combat screen stretch and sag over time. Trim frame equipped with mounting flange that mate with wall brackets. The Fixed Projector Screen is available in different image area sizes and screen materials.
- Uniform tension is applied to entire surface area
- Designed for wall mounting
- Beveled and extruded aluminum trim frame forms 4" border on all 4 sides
- NTSC screen format
- Viewing surfaces have 3/4" hem pocket on all four sides
- Equipped with mounting flange mate with wall brackets
- Injection molded corners
- Radical new approach to fabric
- Adjust surface tension up to 1-1/2"
- Black finished frames
- Select from a variety of image area sizes and screen materials
|
