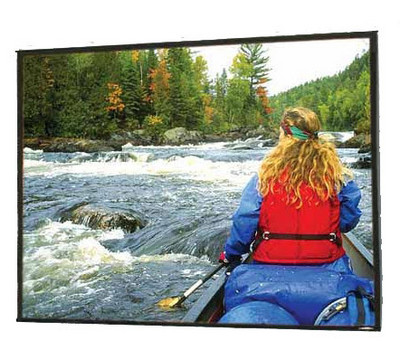

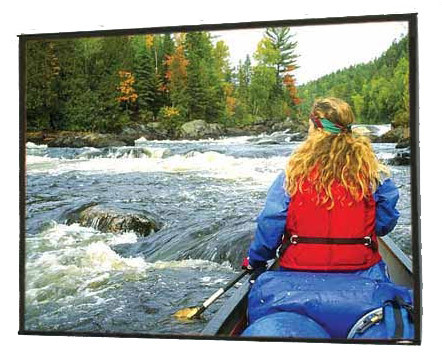

This recessed ceiling mounted Draper Access/Series E - Widescreen Format Electric Projector Screen - FREE Inside Delivery! has a viewing surface which is flame and mildew resistant. It features extrude aluminum case with white finish. The end caps are stamped steel and bottom panel forms slot for passage of viewing surface which is easily removable for access. It has a symmetrical housing to allow for left or right-hand motor location, and for viewing surface to unroll from the back or front of the roller. The case includes bottom flange for trim around edges of ceiling opening and is mounted with 3/8 inch threaded rod, with lag screws through brackets, or with wire in a grid ceiling. The mounting brackets slide in channels on top of case allowing brackets to move which avoid interference with conflicting building structures. Brackets are locked in position by tightening screws and also angled to meet installation requirements.
The roller/fabric assembly is installed in case at factory or job site. Brackets supporting roller/fabric assembly to slide in track inside top of case allows viewing surface centered in case regardless of screen size. Electrically operated 110-120 volts AC, 60 hertz thee wire motor mounted inside the screen roller. Motor is instantly reversible, lifetime lubricated, with internal thermal over load protector and electric brake. The quiet motor creating less than 44 decibel noise, with preset, accessible limit switches and built-in low voltage controller.
The housing of Electric Projector Screen feature internal junction box, allowing it to installed and wired to building supply wires at an early stage of construction. The junction box has plug-in style connector, accepting the mating half of the connector from the motorized roller/fabric assembly. The three position control switch to stop or reverse screen at any point and switches are furnished with cover plate.
This Electric Projector Screen is available in a variety of image areas and screen materials.
FREE! Inside Delivery!
We will bring your Electric Projector Screen Inside! We won't leave it curbside like the other guys. |  |
|
|
|
|
|
|
|
|
|
|
|
|
-
Screen Color: White
-
Gain: 1.10 in
-
Screen Fabric: Matte white, Glass beaded, High contrast gray
-
Format: Widescreen
-
Aspect Ratio: 1.85:1
-
Viewing Angle: 180 Deg
-
Diagonal Viewing Size: 99 in
-
Switch: IR remote, Wall switch
-
Mounting: Ceiling recessed
-
Border: Yes
-
Contrast: High contrast
-
Construction: Rugged
-
Screen Height: 87, 92, 104, 116, 140, 160 in
-
Screen Width: 87, 50, 56, 63, 76, 86.50 in
-
Voltage: 220 V at 50 Hz
-
Casing Color: Black
Product Overview & Specs
LOWEST Price on the Web...Shipping is FREE!BEST PRICE on the Web! FREE Shipping! EASY Inside delivery! QUESTIONS? Call us! 800-718-1710
This recessed ceiling mounted Draper Access/Series E - Widescreen Format Electric Projector Screen - FREE Inside Delivery! has a viewing surface which is flame and mildew resistant. It features extrude aluminum case with white finish. The end caps are stamped steel and bottom panel forms slot for passage of viewing surface which is easily removable for access. It has a symmetrical housing to allow for left or right-hand motor location, and for viewing surface to unroll from the back or front of the roller. The case includes bottom flange for trim around edges of ceiling opening and is mounted with 3/8 inch threaded rod, with lag screws through brackets, or with wire in a grid ceiling. The mounting brackets slide in channels on top of case allowing brackets to move which avoid interference with conflicting building structures. Brackets are locked in position by tightening screws and also angled to meet installation requirements.
The roller/fabric assembly is installed in case at factory or job site. Brackets supporting roller/fabric assembly to slide in track inside top of case allows viewing surface centered in case regardless of screen size. Electrically operated 110-120 volts AC, 60 hertz thee wire motor mounted inside the screen roller. Motor is instantly reversible, lifetime lubricated, with internal thermal over load protector and electric brake. The quiet motor creating less than 44 decibel noise, with preset, accessible limit switches and built-in low voltage controller.
The housing of Electric Projector Screen feature internal junction box, allowing it to installed and wired to building supply wires at an early stage of construction. The junction box has plug-in style connector, accepting the mating half of the connector from the motorized roller/fabric assembly. The three position control switch to stop or reverse screen at any point and switches are furnished with cover plate.
This Electric Projector Screen is available in a variety of image areas and screen materials.
FREE! Inside Delivery!
We will bring your Electric Projector Screen Inside! We won't leave it curbside like the other guys. | |
- Widescreen formatted Electric Projector Screen
- Motor-in-roller assures quiet and smooth operation
- Conventional viewing surface
- Flame and mildew resistant screen surface
- Quiet motor creating less than 44 dB noise, with preset, accessible limit switches
- 3 Position control switch to stop or reverse screen at any point
- Aluminum extruded case with white finish
- Can be operated from any remote location
- Select from a variety of image areas and screen materials
|
|
|
