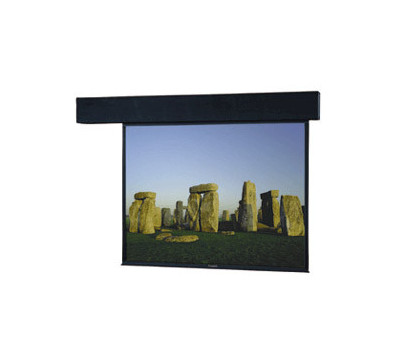

This Da-Lite Matte White Square Format Senior Electrol Screen features 3-wire quick reversal motor with ball bearing and oiled for life, with automatic thermal overload cutout and integral interlocking gears. It has pre-set but adjustable limit switches to automatically stop screen fabric in the "up" and "down" position. The stop action is positive to prevent coasting and the rigid metal roller is mounted on two heavy duty brackets equipped with self aligning bearings. The case is of wood with a black primer coat. It has double top for extra rigidity and strength, and the motor compartment is metal lined. Heavy metal brackets are supplied for mounting screen to wall or ceiling. It comes complete with 3 position control switch with cover plate.
This Electric Projector Screen is perfect for auditorium, stage or any other large screen application. The matte white is the most versatile screen surface and the premier choice when ambient light is controllable. It evenly distributes light over a wide viewing area while colors remain bright and life-like, with no shifts in hue. Screen surface is flame retardant and mildew resistant with standard black masking borders. The screen surface can be cleaned with mild soap and water. This Electric Projector Screen with square screen format is available in different diagonal viewing sizes and is offered in 2 different operating voltages. Single motor low voltage control and series control board are optional.
|
|
|
|
|
|
|
|
|
|
|
|
-
Gain: 1.00 in
-
Screen Fabric: Matte white
-
Format: Square
-
Viewing Angle: 50 Deg
-
Application: Auditorium, Stage
-
Switch: Wall switch
-
Mounting: Recessed wall mount or ceiling mount
-
Border: Black masking borders
-
Black Drop: 20 ft
-
Motor: Reversal motor
-
Screen Height: 50, 60, 70, 84, 96, 108, 120, 144, 168, 192, 216, 240, 288 in
-
Screen Width: 50, 60, 70, 84,72, 96, 108, 120, 144, 127.2, 168, 192, 216, 240 in
-
Voltage: 120/220 V at 50 Hz
-
Bracket: Heavy metal bracket
-
Casing Color: Black
Product Overview & Specs
This Da-Lite Matte White Square Format Senior Electrol Screen features 3-wire quick reversal motor with ball bearing and oiled for life, with automatic thermal overload cutout and integral interlocking gears. It has pre-set but adjustable limit switches to automatically stop screen fabric in the "up" and "down" position. The stop action is positive to prevent coasting and the rigid metal roller is mounted on two heavy duty brackets equipped with self aligning bearings. The case is of wood with a black primer coat. It has double top for extra rigidity and strength, and the motor compartment is metal lined. Heavy metal brackets are supplied for mounting screen to wall or ceiling. It comes complete with 3 position control switch with cover plate.
This Electric Projector Screen is perfect for auditorium, stage or any other large screen application. The matte white is the most versatile screen surface and the premier choice when ambient light is controllable. It evenly distributes light over a wide viewing area while colors remain bright and life-like, with no shifts in hue. Screen surface is flame retardant and mildew resistant with standard black masking borders. The screen surface can be cleaned with mild soap and water. This Electric Projector Screen with square screen format is available in different diagonal viewing sizes and is offered in 2 different operating voltages. Single motor low voltage control and series control board are optional.
- Matte white screen fabric with square screen format
- Largest enclosed electric screen
- Adjustable limit switches to automatically stop screen fabric
- Flame retardant and mildew resistant fabric
- Wall or ceiling mounted Electric Projector Screen
- Electrically operated 120 V (60 Hz) motor
- 2 Heavy duty brackets equipped with self aligning bearings
- Case is made of wood, with double top
- 3 Position control switch with cover plate
- Perfect for auditorium, stage or any other larger screen application
- Available in different viewing sizes
- Offered in 2 different operating voltages
- Low voltage control and serial control board is optional
|
|
|
