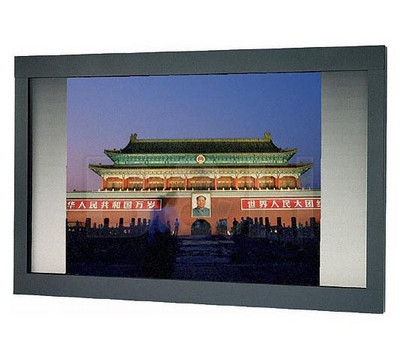

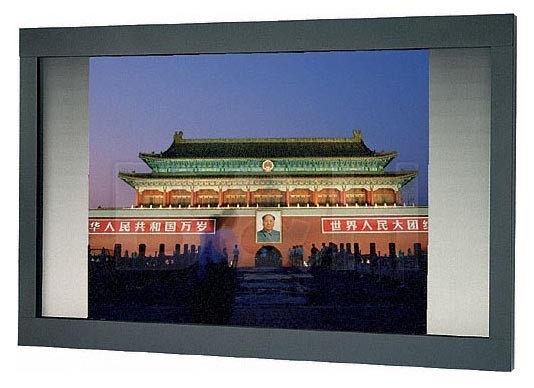

This Da-Lite HDTV to NTSC Format Pro Imager Vertical Screen Masking System Fixed Projector Screen - Fast FREE FedEx Shipping! is installed over Da-Lites Imager, Dia-Snap or Perm-Wall or rear projection screens or over any other permanently wall mounted screen. This motorized masking system masks NTSC video format to HDTV format. The masking fabric will mask the screen equally from top to bottom and close symmetrically to correct format. It has masking systems, motorized, for use with a permanently tensioned projection screen, drive unit is inside roller, 3-wire, instantly reversible, lifetime lubricated, with adjustable limit switches, thermal overload protector and electric brake. It operates on 120 volts AC 60 hertz 1.2 Amps. The motorized roller is 1.6 inch diameter extruded aluminum. The channels and roller boxes has aluminum custom extruded shapes, 0.090 wall, finished matte black. Masking fabric has close woven fiberglass base textile with black vinyl film securely bonded to the outside opaque, fire retardant, washable. The system masks screen equally from top to bottom, closing symmetrically to a predetermined alternate format. Motorized roller oppose a spring roller, 1-3/4" diameter, institutional quality, with heavy-duty spring, in one-piece steel roller. Masking fabric is mounted to aluminum slat bar, and operated by two take-up straps of black woven polypropylene. The minimum break strength is 200 pounds, and it is completely concealed by side channels at all times. The Fixed Projector Screen is available in black powder or Pro-Trim frame finishes. Choose the screen from different sizes. The low voltage control, serial control board, and video projector interface are optional.
FREE! Inside Delivery!
We will bring your Fixed Projector Screen Inside! We won't leave it curbside like the other guys. |  |
|
|
|
|
|
|
|
|
|
|
|
|
-
Screen Fabric: Matte black
-
Format: HDTV/NSTC
-
Aspect Ratio: 1.78:1
-
Diagonal Viewing Size: 60, 72, 84, 96, 100, 120, 150 in
-
Frame Color: Black powder, Pro trim
-
Mounting: Wall Mount
-
Width: 57, 66.5, 76, 86, 89, 105, 129 in
-
Border: Yes
-
Screen Width: 36, 43, 50.5, 57.5, 60, 72, 90 in
-
Construction: Fabric
-
Height: 48, 55, 62.50, 69.50, 72, 84, 102 in
-
Screen Height: 48, 57.50, 67, 77, 80, 96, 120 in
-
Package Weight: 38.00, 44.00, 50.00, 56.00, 58.00, 68.00, 85.00 lbs
Product Overview & Specs
LOWEST Price on the Web...Shipping is FREE!BEST PRICE on the Web! FREE Shipping! EASY Inside delivery! QUESTIONS? Call us! 800-718-1710
This Da-Lite HDTV to NTSC Format Pro Imager Vertical Screen Masking System Fixed Projector Screen - Fast FREE FedEx Shipping! is installed over Da-Lites Imager, Dia-Snap or Perm-Wall or rear projection screens or over any other permanently wall mounted screen. This motorized masking system masks NTSC video format to HDTV format. The masking fabric will mask the screen equally from top to bottom and close symmetrically to correct format. It has masking systems, motorized, for use with a permanently tensioned projection screen, drive unit is inside roller, 3-wire, instantly reversible, lifetime lubricated, with adjustable limit switches, thermal overload protector and electric brake. It operates on 120 volts AC 60 hertz 1.2 Amps. The motorized roller is 1.6 inch diameter extruded aluminum. The channels and roller boxes has aluminum custom extruded shapes, 0.090 wall, finished matte black. Masking fabric has close woven fiberglass base textile with black vinyl film securely bonded to the outside opaque, fire retardant, washable. The system masks screen equally from top to bottom, closing symmetrically to a predetermined alternate format. Motorized roller oppose a spring roller, 1-3/4" diameter, institutional quality, with heavy-duty spring, in one-piece steel roller. Masking fabric is mounted to aluminum slat bar, and operated by two take-up straps of black woven polypropylene. The minimum break strength is 200 pounds, and it is completely concealed by side channels at all times. The Fixed Projector Screen is available in black powder or Pro-Trim frame finishes. Choose the screen from different sizes. The low voltage control, serial control board, and video projector interface are optional.
FREE! Inside Delivery!
We will bring your Fixed Projector Screen Inside! We won't leave it curbside like the other guys. | |
- Motorized masking system for masking NTSC video format to HDTV format
- System installation over Da-Lites Imager, Dia-Snap or Perm-Wall or rear projection screens or over any other permanently wall mounted screen
- Masking fabric will mask the screen equally from top to bottom and close symmetrically to correct format
- Masking systems, motorized for use with permanently tensioned projection screen
- Drive unit inside roller, 3-wire, instantly reversible, lifetime lubricated, with adjustable limit switches, thermal overload protector and electric brake
- Operates on 120 V AC 60 Hz 1.2 Amps
- Motorized roller to be 1.6" diameter extruded aluminum
- Channels and roller boxes is aluminum custom extruded shapes
- Motorized roller oppose spring roller 1-3/4" diameter, institutional quality, with heavy-duty spring, in 1-piece steel roller
- Choose from different sizes
- Available in black powder or pro-trim finishes
- Optional low voltage control, serial control board, and video projector interface
|
|
|
|
|
|
