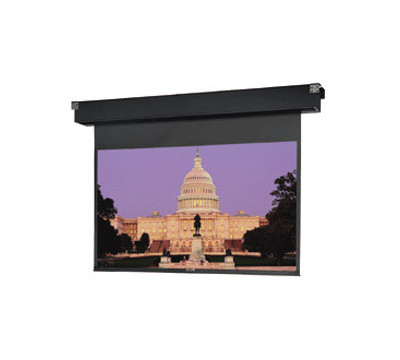

Electrically operated Da-Lite HDTV Format to NTSC Video Format Dual Masking Electrol Screen is ideal for home theaters or where a variety of image formats are projected. It has two specially designed motors mounted inside two rollers, to be three wire quick reversal type, oiled for life, with automatic thermal overload cutout, integral gears, capacitor and an electric brake to prevent coasting. It has pre-set limit switches to automatically stop picture surfaces in the "up" and "down" positions. Screen fabric is flame retardant and mildew resistant fiberglass. Masking fabric is provided on the sides to convert the screen to video format. Bottom of the fabric is formed into a pocket holding a 3/8 inch diameter metal rod. The ends of the rod are protected by heavy duty plastic caps. Bottom of each masking fabric is formed into a pocket holding a flat steel bar. The case is made of wood and is finished with a black primer coat. It comes complete with a three position control switch and a two position control switch with cover plate. Unique step-back masking design eliminates shadows. This Electric Projector Screen is available in variety of sizes and fabrics. It is offered with two different operating voltages. The dual motor low voltage control is optional.
|
|
|
|
|
|
|
|
|
|
|
|
-
Screen Color: Matte white
-
Gain: 1.00 in
-
Screen Fabric: Matte white, High contrast matte white
-
Format: HDTV, NTSC
-
Viewing Angle: 50 Deg
-
Application: Home theater
-
Switch: Pre-set limit switch
-
Mounting: Roller motor mounting
-
Border: Black masking borders
-
Contrast: High contrast
-
Black Drop: 13 ft
-
Screen Height: 45, 50, 54, 60, 69, 87 in
-
Screen Width: 60, 67, 72, 80, 92, 116 in
-
Voltage: 120/220 V
-
Bracket: 3.00 in
-
Casing Color: White
Product Overview & Specs
Electrically operated Da-Lite HDTV Format to NTSC Video Format Dual Masking Electrol Screen is ideal for home theaters or where a variety of image formats are projected. It has two specially designed motors mounted inside two rollers, to be three wire quick reversal type, oiled for life, with automatic thermal overload cutout, integral gears, capacitor and an electric brake to prevent coasting. It has pre-set limit switches to automatically stop picture surfaces in the "up" and "down" positions. Screen fabric is flame retardant and mildew resistant fiberglass. Masking fabric is provided on the sides to convert the screen to video format. Bottom of the fabric is formed into a pocket holding a 3/8 inch diameter metal rod. The ends of the rod are protected by heavy duty plastic caps. Bottom of each masking fabric is formed into a pocket holding a flat steel bar. The case is made of wood and is finished with a black primer coat. It comes complete with a three position control switch and a two position control switch with cover plate. Unique step-back masking design eliminates shadows. This Electric Projector Screen is available in variety of sizes and fabrics. It is offered with two different operating voltages. The dual motor low voltage control is optional.
- Dual motor concealed-in-the-ceiling electric screen
- Patented rubber mounting system for in-the-roller motor
- Flame retardant and mildew resistant screen fabric
- Ideal for home theaters or where variety of image formats are projected
- Unique "step-back" masking design eliminates shadows
- 2 Specially designed motors mounted inside two rollers
- Ends of rod protected by heavy duty plastic caps
- Wood case finished with black primer coat
- Available in various sizes and fabrics
- Offered with 2 different operating voltages
- Optional low voltage control dual motor
|
|
|
