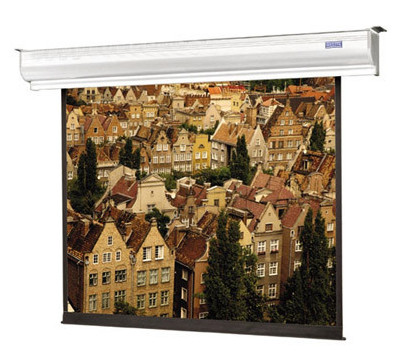

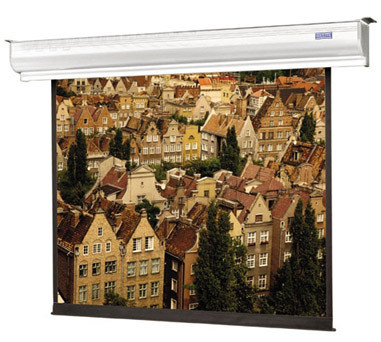

The Da-Lite HDTV Format Contour Electrol Screen features an electrically operated motor, mounted inside a roller with a patented noise silencer. The silencer is a three-wire quick reversal type, oiled for life, with automatic thermal overload cut-out, integral gears, and capacitor. The preset, but adjustable limit switches can be used to automatically stop the picture surface in the "up" and "down" positions. A junction box is integrated into the housing making it possible to install the housing and wire to the building's electrical system during construction. The junction box contains a four prong connector that is mounted in the housing for easy plug-in connection to the motorized fabric and roller assembly. The roller is made of rigid metal, and is 3 inches in diameter. The adjustable roller mounting brackets allow centering or offsetting of the screen within the case. The screen case is a two piece design made of extruded aluminum. The screen fabric is flame retardant and mildew resistant fiberglass and comes with black masking borders. The bottom of fabric is formed into a pocket holding a 3/8 inch metal rod. The screen includes a three-position control switch and a cover plate. It is listed by Underwriters' laboratories.
This Electric Projector Screen is available in a variety of sizes and fabrics. The veneer case cover is available in different finishes. Choose from two operating voltages and case colors. Single motor low voltage control system, serial control board, infrared remote, wall controller, Ethernet adapter, and video projector interface are optional.
|
|
|
|
|
|
|
|
|
|
|
|
-
Screen Fabric: Matte white, Glass beaded, Video spectra 1.5, High contrast matte white, High power
-
Format: HDTV
-
Aspect Ratio: 16:09
-
Diagonal Viewing Size: 92, 106, 110, 119, 133, 159 in
-
Switch: IR/RF remote, Wall switch
-
Mounting: Wall or ceiling
-
Border: Yes
-
Contrast: High contrast
-
Screen Height: 45, 52, 54, 58, 65, 78 in
-
Screen Width: 80, 92, 96, 104, 116, 139 in
-
Voltage: 120/220 V
-
Casing Color: Casing Color: Graphite, Black, White
Veneer Case Cover Finish: Light oak, Medium oak, Natural walnut, Heritage walnut, Mahogany, Cherry, Honey maple
Product Overview & Specs
The Da-Lite HDTV Format Contour Electrol Screen features an electrically operated motor, mounted inside a roller with a patented noise silencer. The silencer is a three-wire quick reversal type, oiled for life, with automatic thermal overload cut-out, integral gears, and capacitor. The preset, but adjustable limit switches can be used to automatically stop the picture surface in the "up" and "down" positions. A junction box is integrated into the housing making it possible to install the housing and wire to the building's electrical system during construction. The junction box contains a four prong connector that is mounted in the housing for easy plug-in connection to the motorized fabric and roller assembly. The roller is made of rigid metal, and is 3 inches in diameter. The adjustable roller mounting brackets allow centering or offsetting of the screen within the case. The screen case is a two piece design made of extruded aluminum. The screen fabric is flame retardant and mildew resistant fiberglass and comes with black masking borders. The bottom of fabric is formed into a pocket holding a 3/8 inch metal rod. The screen includes a three-position control switch and a cover plate. It is listed by Underwriters' laboratories.
This Electric Projector Screen is available in a variety of sizes and fabrics. The veneer case cover is available in different finishes. Choose from two operating voltages and case colors. Single motor low voltage control system, serial control board, infrared remote, wall controller, Ethernet adapter, and video projector interface are optional.
- Electrically operated motor, mounted inside the roller with a patented noise silencer
- Preset, but adjustable limit switches automatically stop the picture surface in the desired positions
- Stylish curved aluminum extruded case
- 2" Dia roller made of rigid metal
- Adjustable roller mounting brackets allow centering or offsetting of the screen within the case
- Screen fabric is flame retardant and mildew resistant fiberglass
- Bottom of the fabric formed into a pocket holding a 3/8" metal rod
- Includes a 3-position control switch and cover plate
- Listed by Underwriters' laboratories
- Available in a variety of sizes and fabrics
- Veneer case cover available in different finishes
- Choose from 2 operating voltages and case colors
- Single motor low voltage control system, serial control board, infrared remote, wall controller, Ethernet adapter, and video projector interface are optional
|
|
|
|
|
|
